Galvanized
Other Trailers
Kayak, Ski Boat, Sailboat, Switch, MT and JBV Series
Galvanized
Galvanized JBV Series
Standard Features
- Welded Frame w/ Spring Axles
- Galvanized Hardware
- Galvanized Spoke Wheels
- Heat Shrink Wire Connectors
- 3x3 Tongue
- SS Spindle Seals
- Tongue Jack
Optional Features
- Coming Soon
| Item Number | Model # | Boat Length | Net Capacity | Total Width | Total Length | Tire Size | Trailer Weight |
|---|---|---|---|---|---|---|---|
| KA0700 | JBV15-17 1200 | 14'-16' | 1200 | 85" | 18'-3" | 480X12C | 360 |
| KA0701 | JBV15-17 1500 | 14'-16' | 1500 | 85" | 18'-3" | 480X12C | 480 |
| KA0702 | JBV15-17W 1200 | 14'-16' | 1200 | 87" | 18'-3" | 480X12C | 360 |
| KA0703 | JBV15-17 W 1500 | 14'-16' | 1500 | 87" | 18'-3" | 480X12C | 360 |
| KA0704 | JBV15-17W 1700 | 14'-16' | 1700 | 87" | 18'-3" | ST175/80B13C | 360 |
| KA0704-1 | JBV15-17 W 2000 | 14'-16' | 2000 | 87" | 18'-3" | ST175/80B13C | 360 |
| JD0010 | CAT1418-500 | 14'-18' | 500 | 90" | 17'-3" | 480X8B | 280 |
| JD0020 | CAT1418-1200 | 14'-18' | 1200 | 90" | 17'-3" | 480X12C | 300 |
| KA0500 | TMPWC4 MULTI CRAFT | 6'-10' | 3650 | 90" | 29'-11" | 800X10E | 770 |
Galvanized Kayak Series
Standard Features
- Hot Dipped Galvanized Construction
- Galvanized wheels and axles
- Galvanized Fenders
- Buddy Bearings
- Tongue Jack Standard on All Models
- Standard with 2" Coupler
Optional Features
- Coming Soon
| Item Number | Model | Net Capacity | Tire Size | Boat Length* | Total Width | Total Length | Tongue Size |
|---|---|---|---|---|---|---|---|
| KA0010 | DUAL KAYAK 480X12B (GALV) | 1200 | 12B | 8' - 16' | 73" | 14'10" | 2X3 |
| KA0020 | QUAD KAYAK 480X12B (GALV) | 1200 | 12B | 8' - 16' | 73" | 14'10" | 2X3 |

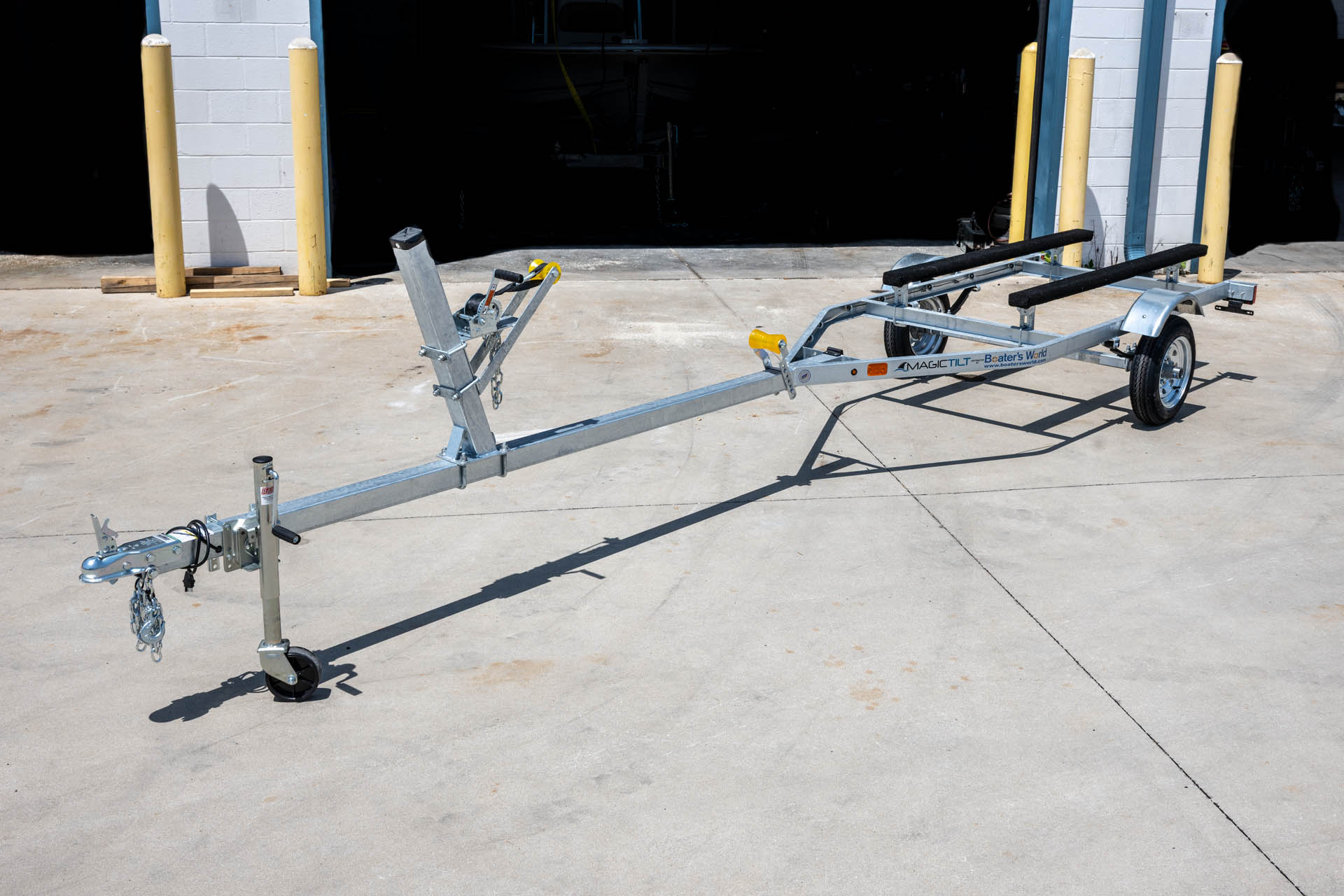

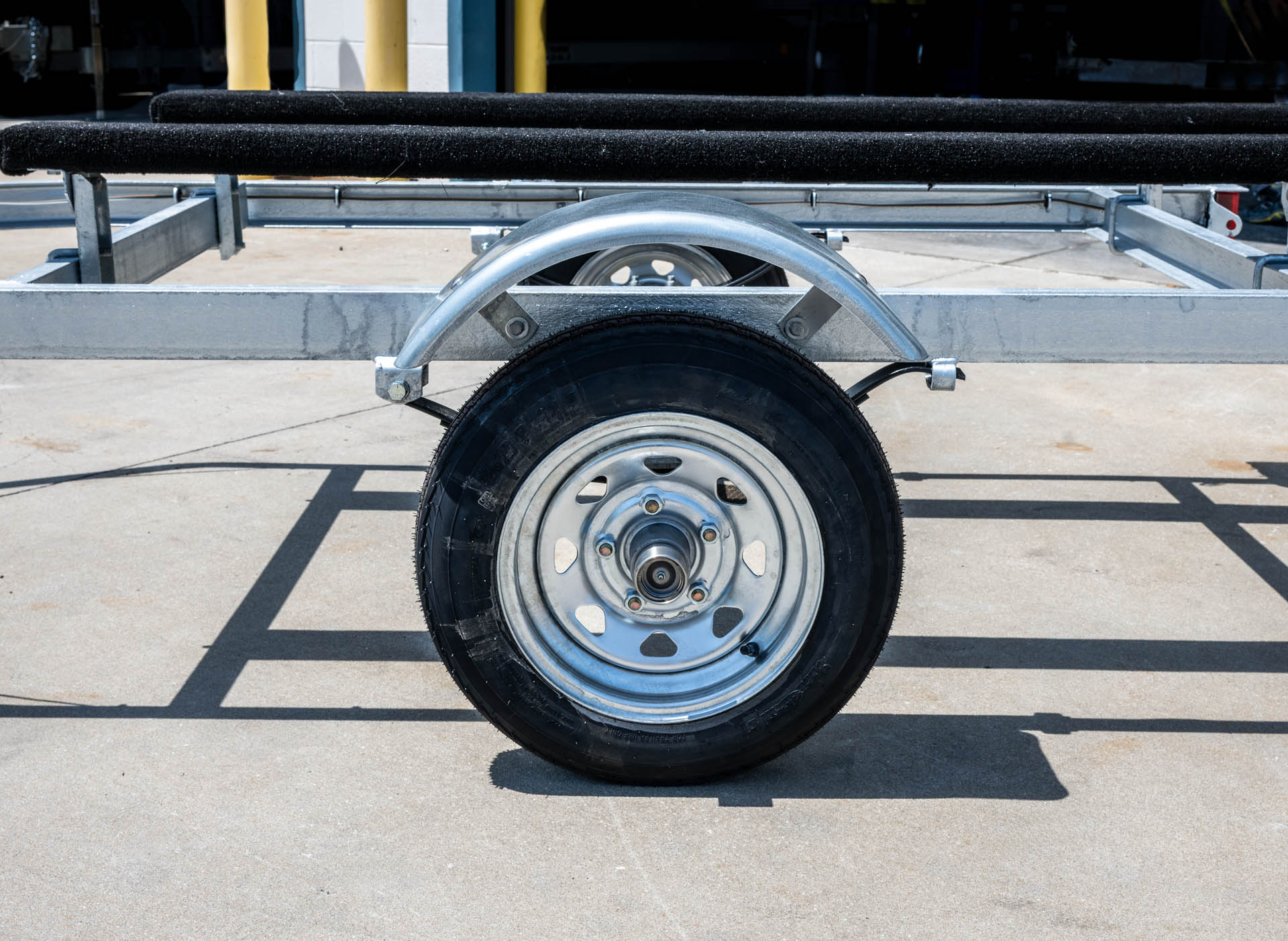

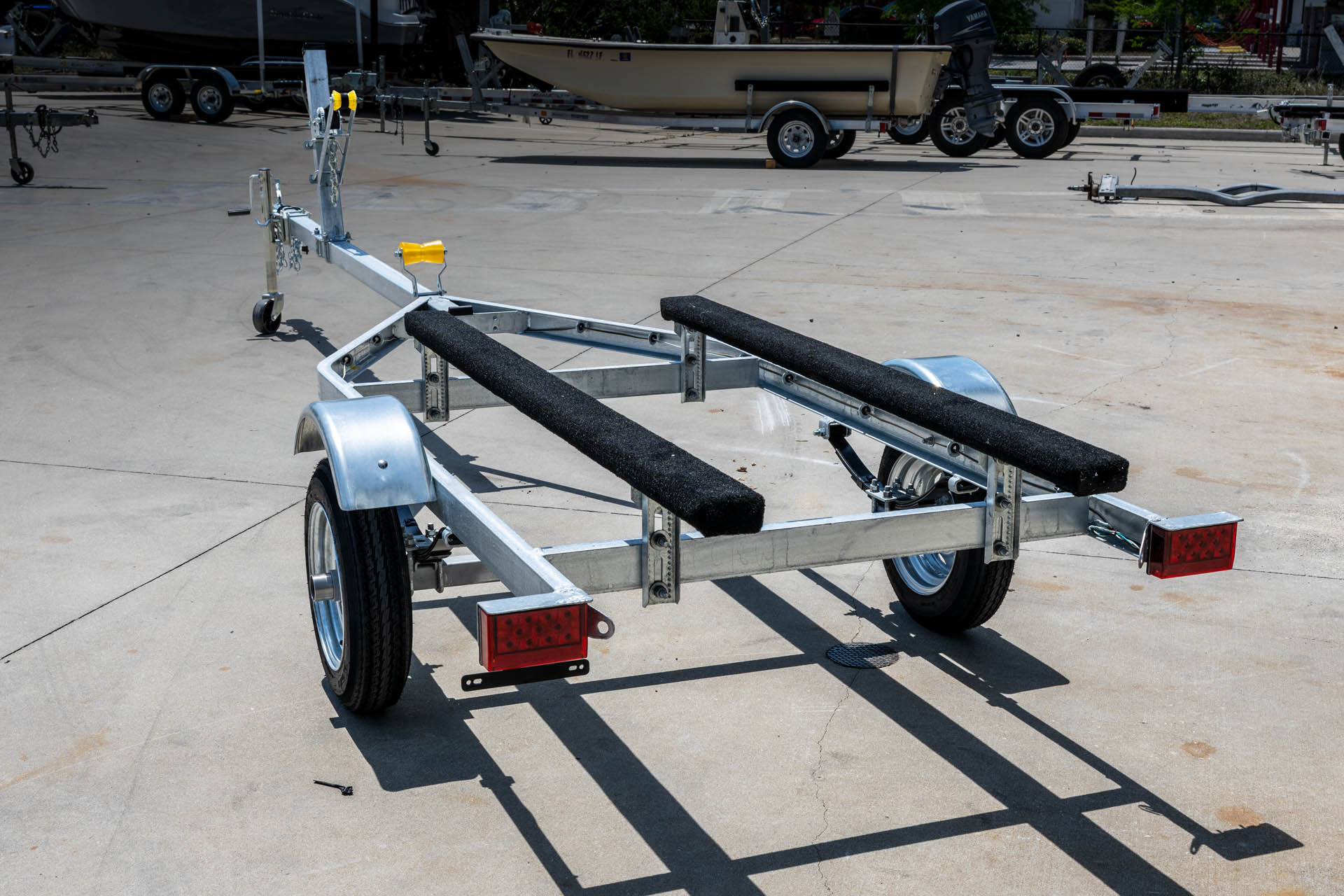

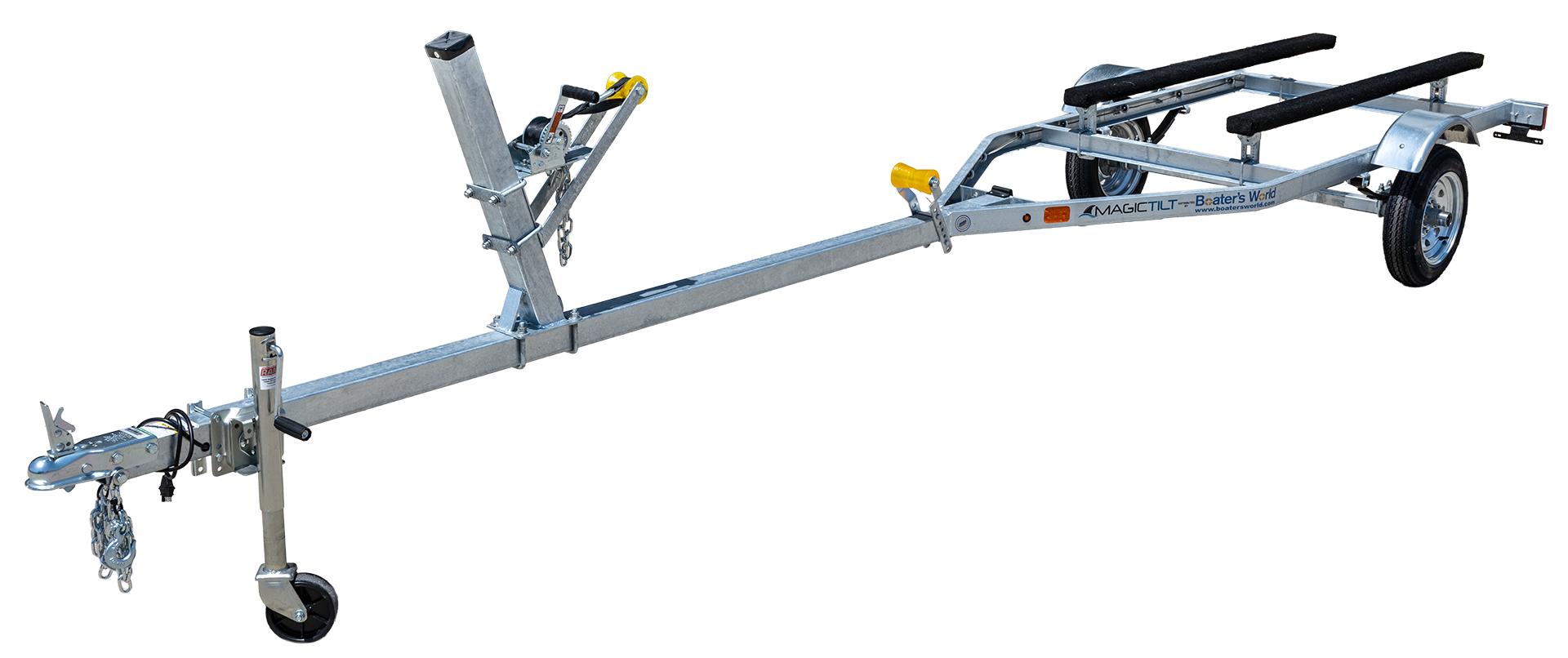

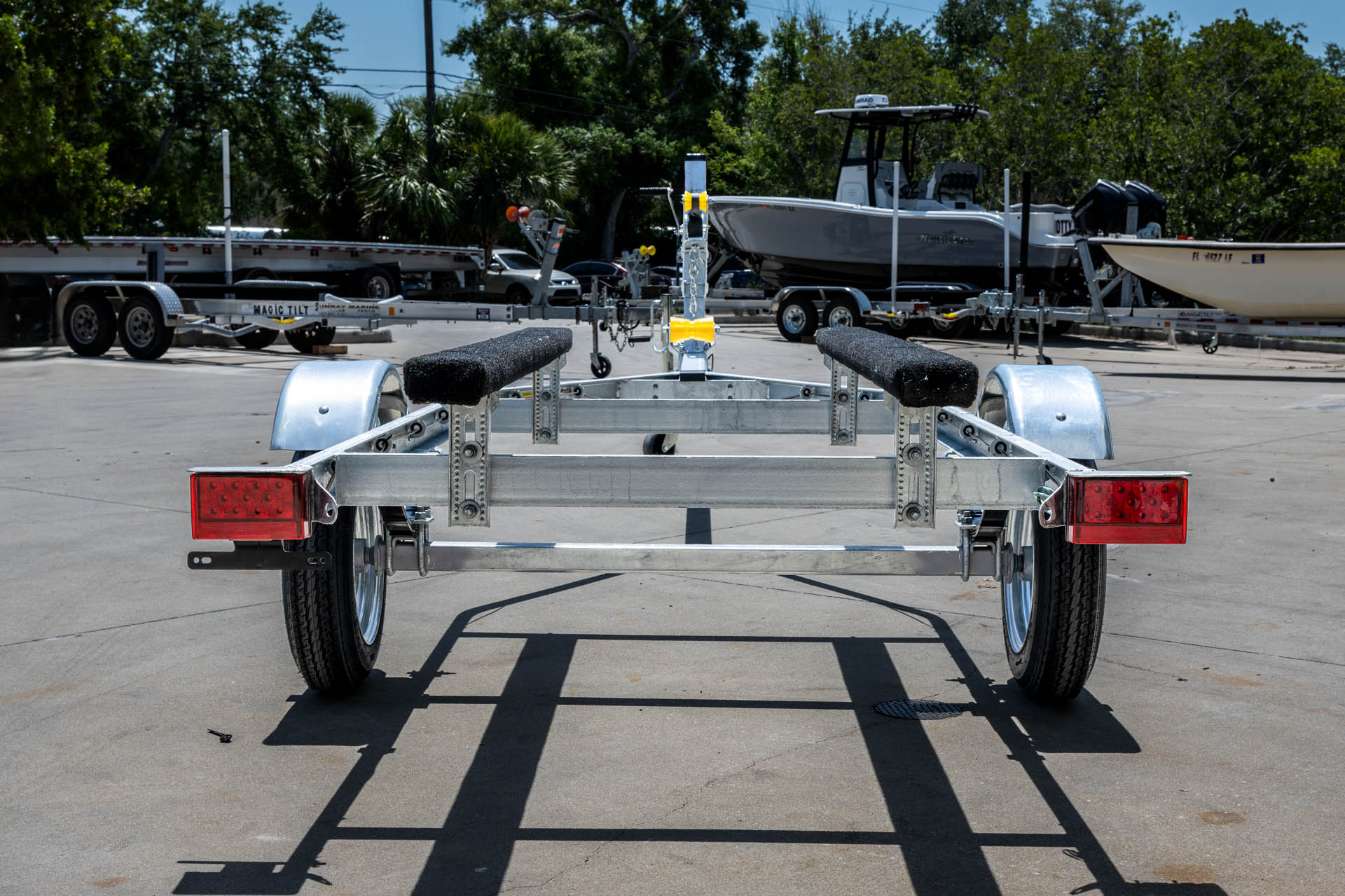

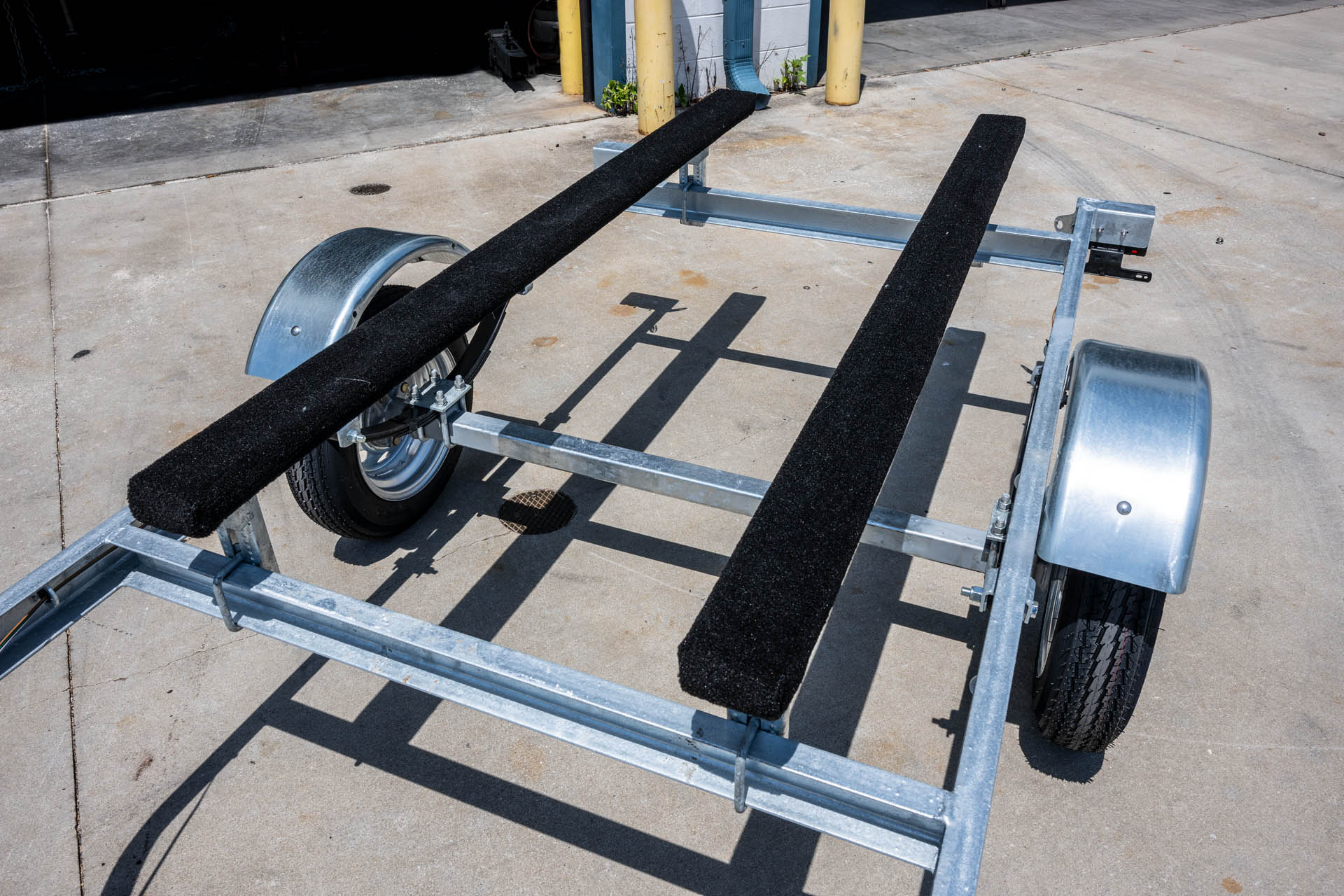

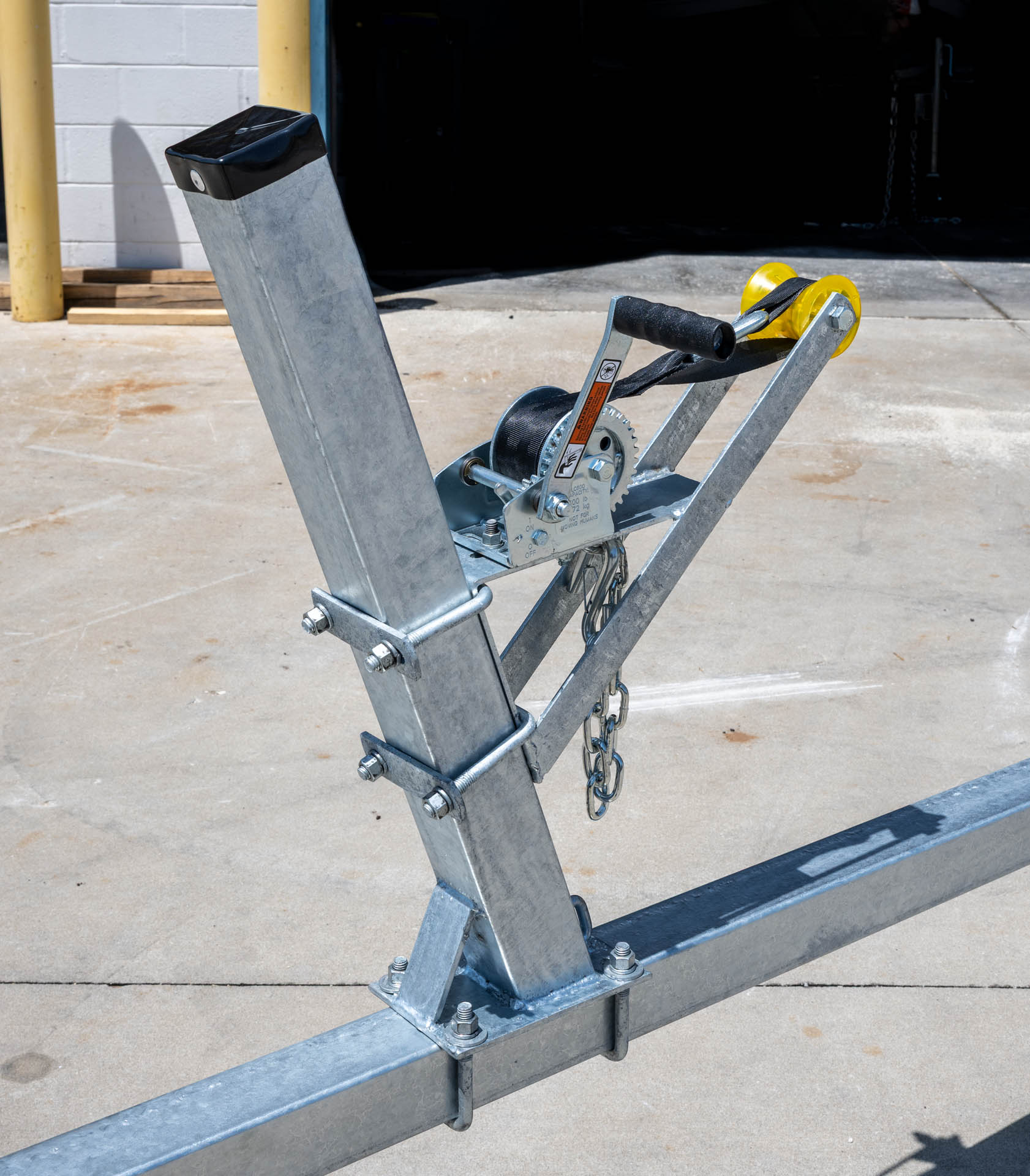

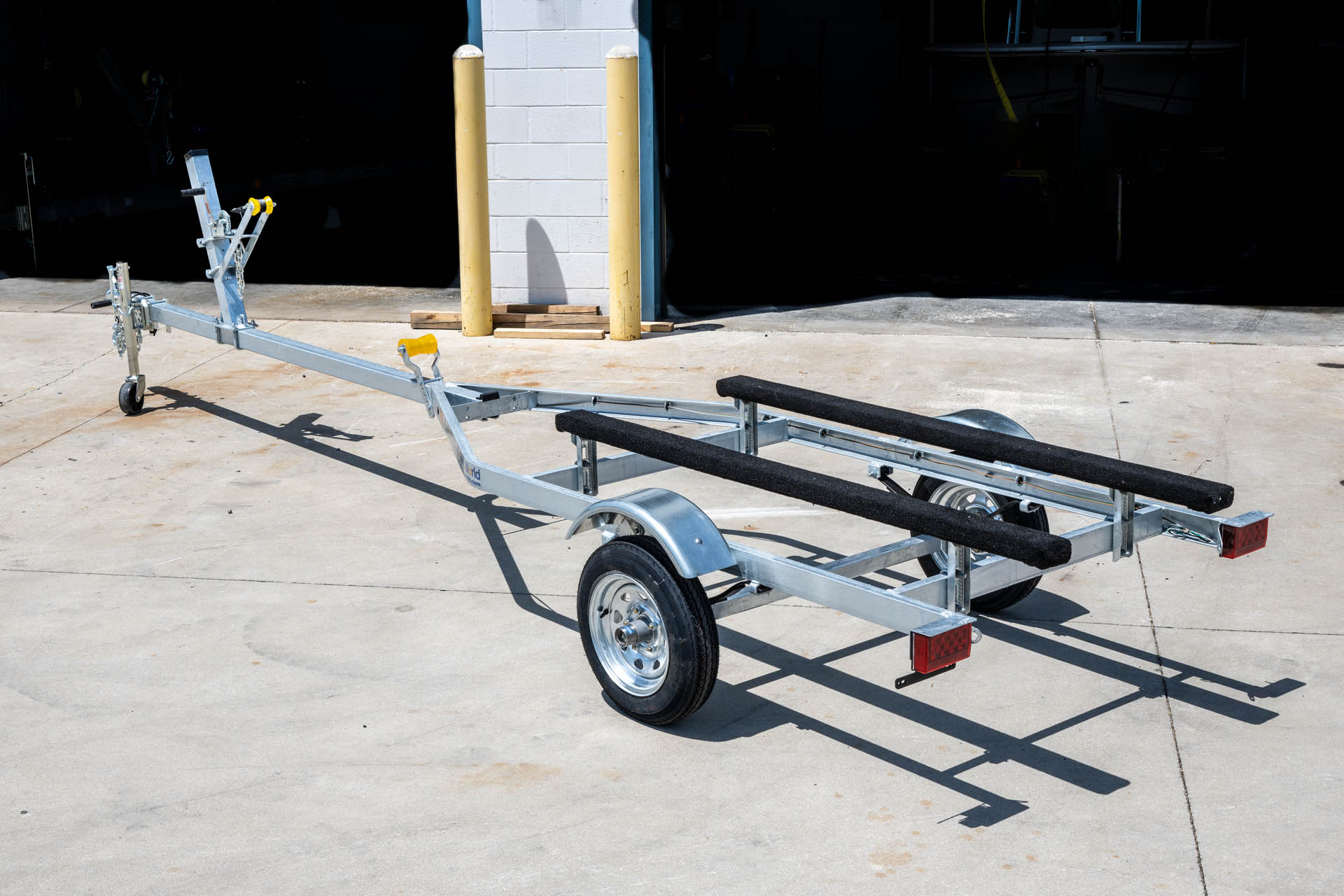

Galvanized MT Series
Standard Features
- Hot Dipped Galvanized Tube Finish
- Torsion Axles Standard, except on MT14
- Tongue Jack
- Fully Grounded Waterproof Lighting
- Sure-lube Grease System MT14 & MT16XW
- Sealed Bearing System on MT16W
- Flat Boards are standard as shown
- Upright Bunk setup available
- Flip Bunk available
Optional Features
- Side Guides
- Add 2x4 Flat Bunk (ABLR)
- Extended Tongue on MT14
| Item Number | Model | Net Capacity | Tire Size | Boat Length* | DBF | Total Width | Total Length | Trailer Weight | Tongue Length | Tongue Size |
|---|---|---|---|---|---|---|---|---|---|---|
| AA1020 | MT14-900 | 900 | 8B | 12' - 14' | 40" | 55" | 15' 9" | 220 | 98" | 2X3 |
| AA1030 | MT14-1250 | 1250 | 12C | 12' - 14' | 40" | 55" | 15' 9" | 230 | 98" | 2X3 |
| AB1010 | MT16W-900 | 900 | 8B | 12' - 16' | 46" | 61" | 17' 10" | 250 | 120" | 3X3 |
| AB1021 | MT16W-1250 | 1250 | 12C | 12' - 16' | 46" | 61" | 17' 10" | 250 | 120" | 3X3 |
| AB2023 | MTC16XW-1500 | 1500 | 13C | 14' - 16' | 56" | 76" | 18' | 325 | 120" | 3X3 |
| AB2043 | MTCV16XW-1500 | 1500 | 13C | 14' - 16' | 56" | 76" | 18' | 325 | 120" | 3X3 |
| AB1025 | MT16XWL-1500 | 1500 | 13C | 16' - 17' | 56" | 75" | 21' | 350 | 120" | 3X3 |
| AB2040 | MTCV16W-1250 | 1250 | 12C | 12'-16' | 44" | 64" | 19' | 250 | 120" | 3X3 |
| AB2045 | MTCV16XWL-1500 | 1500 | 13C | 16' - 17' | 60" | 80" | 21' | 500 | 84" | 3X3 |
| AB1027 | MT16XXWL-1500 | 1500 | 13C | 16' - 17' | 62" | 80" | 19' | 350 | 120" | 3X3 |
| AB1047 | MT16XXWL-V-1500 | 1500 | 13C | 16' - 17' | 62" | 80" | 19' | 350 | 120" | 3X3 |
Galvanized Sailboat Series
Standard Features
- Coming Soon
Optional Features
- Coming Soon
| Part # | Model # | Boat Length | Net Capacity | Total Width | DBF | Total Length | Tire Size | Trailer Weight |
|---|---|---|---|---|---|---|---|---|
| JD0020 | CAT1418 480 X 12C | 14'-18' | 1200 | 90" | 17'-3" | 480X12C | 300 | |
| JD0010 | CAT1418-500 480 X 8B | 14'-18' | 500 | 90" | 17'-3" | 480X8B | 280 | |
| JD0030 | CAT1820 480X12C | 18'-20' | 1200 | 90" | 19'-3" | 480X12C | 300 | |
| BG3998 | HUTCHINS 14 PICNIC 480X8ST | 14' | 850 | 480X8B | 300 | |||
| BG4002 | HUTCHINS 17 LEGACY 16.5 X 8C | 17' | 1270 | 16.5X8C | 320 | |||
| BG4003-1 | HUTCHINS 17 SUN CAT ECNO. 10E | 17' | 2750 | 800X10E | 320 | |||
| BG4003 | HUTCHINS 17 SUNCAT SNG 10E | 17' | 2360 | 800X10E | 500 | |||
| BG4050 | HUTCHINS 20 ECLIPSE SNG 10E | 20' | 2340 | 800X10E | 520 | |||
| BG4052 | HUTCHINS 20 HORIZON TDM 10E | 20' | 3540 | 800X10E | 720 | |||
| BG3995 | PRECISION 15CB 16.5 X 8C | 15' | 1290 | 16.5X8C | 300 | |||
| BG4000 | PRECISION 15K 16.5 X 8C | 15' | 1270 | 16.5X8C | 320 | |||
| BG4001 | PRECISION 165 16.5X8C | 16' | 1270 | 16.5X8C | 320 | |||
| BG4004 | PRECISION 18 800X10E | 18' | 2750 | 800X10E | 320 | |||
| BG4005 | PRECISION 185 CB 16.5 X 8C | 18' | 1260 | 16.5X8C | 330 | |||
| BG4007 | PRECISION 185 KEEL 16.5 X 8C | 18' | 1260 | 16.5X8C | 330 | |||
| BG4006 | PRECISION 21 800X10E | 21' | 2710 | 800X10E | 360 | |||
| BG4008 | PRECISION 23 TDM 13C TEL | 23' | 4400 | 175/80B13C | 960 | |||
| BG4010 | PRECISION 26 COLGATE TDM 14C | 26' | 5720 | 205/75D14C | 1120 |
